Bakes the active control-rig clip to a skeleton clip ("<name> (baked)") — exportable to FBX/GLB and playable without the rig.

Removes all currently selected keyframes from their curves. Select keyframes in the graph editor first.

Zooms the graph editor to show the full playback time range, from the start frame to the end frame.

Toggles weight locking on selected keyframes. When locked, tangent weight handles cannot be dragged.

Advances the playback time by one frame (1/fps seconds).

Starts or stops animation playback.

Moves the playback time back by one frame (1/fps seconds).

Opens the Retarget wizard (non-modal): queue foreign animation files with per-file validation, auto-map their skeletons onto the rig, and bake retargeted clips. The viewport stays interactive while it is open.

Sets keyframes on all 9 transform channels (translate XYZ, rotate XYZ, scale XYZ) for every selected control at the current time.

Creates keyframes on all channels of the selected controls at the current playback time. Uses the default tangent type from editor settings.

Sets the tangent type to Auto (Catmull-Rom) on all selected keyframes. Auto tangents smoothly interpolate between neighboring keys.

Sets the tangent to flat (horizontal) on all selected keyframes. Creates a plateau effect at each key.

Sets the tangent type to Linear on all selected keyframes. Linear tangents create straight-line interpolation between keys.

Sets the tangent type to Plateau on all selected keyframes. Plateau tangents auto-clamp to prevent overshooting neighboring key values.

Sets the tangent type to Step on all selected keyframes. Step tangents hold the value constant until the next keyframe.

When auto-key is enabled, moving/rotating/scaling controls automatically creates keyframes at the current time.

Opens the Bake Animation popup in the timeline bar. Samples curves at uniform frame intervals and replaces original keyframes with baked ones using Auto tangents.

Opens the Bake → Skeleton popup in the timeline bar. Samples the LIVE composited skeleton pose — the active clip with ALL animation layers and constraint/space-switch results — and appends a fresh self-contained skeleton clip; a skeleton-kind clip is copied with a notice.

Opens the Bake Between popup in the timeline bar. Finds the nearest keyframes left and right of the current playhead and fills the gap with baked keys.

Opens the Bake Infinity popup in the timeline bar. Samples the pre and post infinity regions of curves into real keyframes, then sets infinity modes to Constant.

Opens the Bake Scene popup in the timeline bar. Bakes ALL curves in the active clip over the full playback range. Always prompts for confirmation.

Opens the Bake Space popup in the timeline bar. Re-expresses the selected controls' animation into a chosen space (world / parent / control / bone / object) across a frame range while preserving the world result; supports snap-to-space, on-existing-keys density, dynamic switch handling, and the Convert-to-World / Rebase-to-Parent retarget presets.

Copies all 9 TRS channels from the first selected control. Paste retargets to the current selection.

Copies all selected keyframes to the animation clipboard for later pasting.

Copies the current values of all channels on selected controls at the current time. If no controls are selected, copies all controls.

Opens the Copy/Paste popup. Smart copy collects from selected keys, timeline range, or selected controls. Smart paste retargets to different controls by property name.

Opens the Pose popup. Copy Pose snapshots all TRS values. Paste Pose restores values. Mirror to Left, Mirror All, and Mirror to Right flip poses across the YZ symmetry plane. Creates keyframes only when auto-key is on.

Copies selected keyframes to the clipboard and deletes them from the curve.

Exports the active clip (or named clips) as a .abclip file — native AB clip data, re-importable onto any asset by clip id.

Opens a .abclip file and merges its clips into the shared asset: same-id clips are replaced, new clips append.

Pastes keyframes from the clipboard at the current playhead time.

Pastes the copied pose at the current playhead time. Always targets the original clipboard controls.

Opens the Sculpt Keys brush in the graph editor. LMB drag pushes keyframe values within the brush radius. Shift+LMB smooths values toward neighbors. Adjust radius with Ctrl+Scroll.

Mirror the current control selection to its opposite side.

Detects mirror pairs via rig naming conventions (L_/R_ prefixes or .L/.R suffixes). Unpaired controls stay unchanged.

Show or hide the selection sets timeline bar.

Selection sets let you save named control groupings and restore them with one click. Create and edit sets via the widget itself.

Opens the Set Inbetweens popup in the timeline bar. Redistributes selected keyframes with equal frame spacing. First key stays, subsequent keys are spaced by the gap value.

Open any supported project or 3D file.

Supported formats: GLB, GLTF, OBJ, FBX, PLY, STL, ABC, STEP, .abasset, .controlrig

Routes to the correct import pipeline based on file type and current editor mode.

Removes ALL skeleton and skinning data from the scene: • All bones • All skin weights • All control rig modules/controls/guides • All animations

Meshes are preserved. Use this to start fresh after importing an FBX with unwanted rig data.

One Ctrl+Z restores everything.

Opens a popup to pick joints (shoulder, elbow, wrist + optional clavicle), set name/side, then creates the Biped Arm module with FK + IK + pole + tweak + optional clavicle IK controls.

Opens a popup to pick 3 joints (start, mid, end), set name/side, then creates the Biped Leg module with FK + IK + pole + tweak controls.

Opens the Biped Builder dialog with two modes:

"New Rig", configure spine/neck count, clavicle, hands, feet, and fingers, then create a T-pose biped with all modules.

"From Joints", auto-analyze an existing skeleton to identify biped bones, review/edit the mapping, then create modules with guides snapped to bone positions.

Opens a popup to pick start/end joints, set name and side, then creates the FK chain module with guides snapped to the bone chain.

Opens a popup to pick ankle + toe chain joints, set name/side, then creates the Foot module with FK, BK (reversed), ankle tweak, pivots, roll, and IK effector controls.

Opens a popup to set name, optional root bone, and offset control options, then creates the Global Control module with a guide at the origin.

Opens a popup to configure finger count, joint layout, splay/curl features, then creates the Hand module with FK + metacarpal + splay controls.

Open control-mode popup to create an eye look-at module (slave + target controls). With explicit params, runs headlessly in one undoable step.

Opens a popup to pick neck start + head joints, auto-detects middle bones, then creates the Neck & Head module with HeadIK + FK controls on a spline curve.

Open control-mode popup to pick bones and create a quadruped front leg module (elbow/carpus/fetlock). With explicit params, runs headlessly in one undoable step.

Open control-mode popup to pick bones and create a quadruped hind leg module (hip/stifle/hock/metatarsus). With explicit params, runs headlessly in one undoable step.

Open the quadruped one-click builder popup (spine/neck/tail/ears/legs, or From-Joints auto-detect). With explicit params, runs headlessly in one undoable step.

Opens a popup to pick a bone, set name and side, then creates the single control module with a guide snapped to the bone.

Open control-mode popup to create a sphere-roll module (translation-driven auto-roll). With explicit params, runs headlessly in one undoable step.

Opens a popup to pick start/end joints (min 3), set name and side, then creates the Spine module with COG + 3 IK guides.

Opens a popup to pick start + end joints, set parent targets, then creates the StretchyAim module with linked twist and automatic up-vector.

Open control-mode popup to create a vehicle module (body + wheels + steering). With explicit params, runs headlessly in one undoable step.

Open the vehicle one-click builder popup (New-Rig wizard params, or From-Joints auto-detect). With explicit params, runs headlessly in one undoable step.

Deletes the module resolved from the selection (or the { module } param) through the controlrig.deleteModule op — ONE undo restores it.

Toggles shape-edit mode on the selected control — drag the gizmo to reposition/scale the drawn control shape without posing the rig.

Exits guide mode by constructing every module from its guides (rebinds skin at the current pose, mints the controls) and returning to control mode.

Snaps the limb’s IK/FK counterpart to the current pose and flips the blend — ONE undo reverts both.

Opens the per-channel lock & limit editor (lock TRS channels, set min/max limits) for the selected control.

With { module, settings } params, writes module settings through the op (undoable). From the UI, opens the module’s settings surface (guide-mode panel or the limb settings popup).

Retargets every skeleton clip onto the control rig (drives the rig controls). Originals are kept; new control-rig clips are appended in one undoable step. Use RigEditor.retargetClips({ output: 'skeleton' }) to bake into the rig skeleton instead.

Opens the Transfer popup: pick a target mesh, preview the guide wrap (before/after with a displacement heatmap), and transfer the rig onto it in one undoable step.

Add a DeltaMush deformer that smooths deformation artifacts while preserving surface detail. Rest-preserving: it never changes the mesh at bind pose — it only cleans up skinning under pose.

Requires: 1+ objects selected

Compute automatic skin weights for the active mesh using WASM algorithms.

Heat Diffusion: Fast (seconds), good quality for most meshes. BBW (Bounded Biharmonic Weights): High quality, slower (1-5 minutes), requires watertight mesh.

Requires: Active mesh with skin cluster and skeleton.

Isolate the selected meshes, hiding everything else.

Press Alt+Q or use Exit Isolate Mode to return.

Requires: Active mesh or selected mesh(es)

Mirrors weights through the skincluster.mirror-weights op (pass { direction } to flip) — ONE undo reverts.

Relaxes weights on the current vertex/edge/face/island selection through the skincluster.relax op — ONE undo reverts the pass.

Rigidifies weights on the current component selection through the skincluster.rigidify op — ONE undo reverts the pass.

Exits paint weights mode, syncs weights back to the asset, and returns to control rig editing.

Enters paint weights mode so you can brush skin weights on the active mesh.

Remove all meshes, curves, and scene data.

Shows a confirmation dialog before clearing.

Model Editor / Control Rig: clears the working model + DG scene graph + selection. Previewer: clears the previewed asset + animation state.

Available in: Model Editor, Control Rig, Previewer.

Export the scene to a file.

Exports the SHARED scene — the same reconciled data every editor sees. A dirty scene runs the Changes Detected dialog first (skin transfer, deformer bake, UV choices), so the file always matches the reconciled scene.

Animation clips can be exported from ANY editor: choose pose mode, clip, reframe and retime in the dialog.

Supported formats: GLB, GLTF, OBJ, FBX, PLY, STL.

Available in: Model Editor, Control Rig, Previewer.

Open a 3D file or project into the scene.

Supported: GLB, GLTF, OBJ, FBX, PLY, STL, STEP, .abasset, .controlrig.

.abasset files (the AnimBox project format) REPLACE the entire scene. Other formats merge into the existing scene.

Available in: Model Editor, Control Rig, Previewer.

Save the entire project to a .abasset file.

Preserves all data: meshes, materials, textures, skeleton, animations, curves, measurements, draw lines, image planes, and editor state.

Note: a dirty scene (unbaked deformers, edited skinned meshes) routes through the Changes Detected dialog first — apply the choices to save, or cancel to abort.

Hotkey: Ctrl+S Available in: Model Editor, Control Rig, Previewer.

Add a reference image plane to the scene.

Useful for modeling reference, placing a background image in the viewport.

Create an arch shape (partial ring with rectangular cross-section).

Supports adjustable arc angle, optional legs, and inner/outer radius.

Create an arrow primitive.

Opens a dialog with length, shaft width, head width, and style controls.

Create a storage box and matching lid as separate meshes.

Supports flat and lip lid types. Tolerance parameter controls fit gap.

Create an L-shaped bracket with optional gusset.

Gusset can be solid (triangle fill) or cutout (diagonal slab).

Create a capsule (pill shape) primitive.

Opens a dialog with radius, length, and segment controls.

Create a U-shaped channel profile extruded along its length.

Optional inner corner radius for filleted corners.

Create a grid of thin rectangular walls forming compartments.

Designed to fit inside a Storage Box. Adjustable divisions and optional floor.

Create a cone primitive.

Opens a dialog with radius, height, and segment controls.

Create a cross (plus) primitive.

Opens a dialog with arm length, arm width, and height controls.

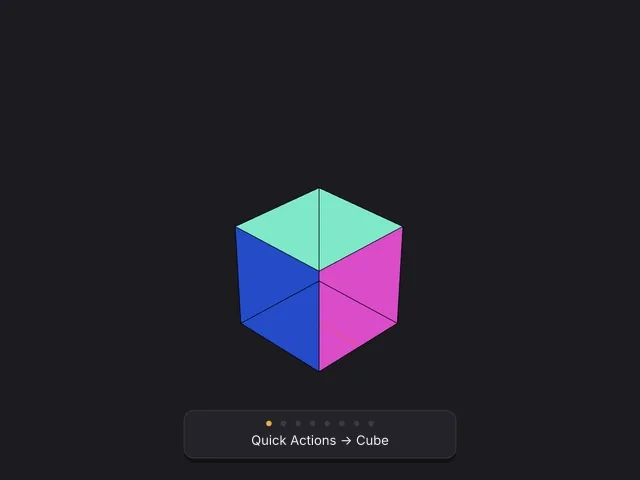

Create a cube primitive.

Opens a dialog with width, height, depth, and subdivision controls.

Convert the selected curve(s) into a mesh.

Single-curve: creates a flat double-sided polygon (top + reversed bottom cap), enters face mode, selects the top face, and opens the interactive extrude tool. Multi-curve: creates one plane per curve in a single undo frame and SKIPS the interactive extrude (select one curve to extrude interactively).

Original curves are preserved.

Requires: 1+ curves selected.

Convert the selected curve(s) into tube/pipe meshes.

Opens an interactive popup with controllable START / END thickness (taper), TWIST start / end (barber-pole), segments, cap ends, and advanced path sampling. Multi-curve: confirm applies the settings to every selected curve as a single undo frame.

Press Enter to confirm, Escape to cancel. Original curves are preserved.

Requires: 1+ curves selected.

Convert each selected curve into a flat polygon mesh (single N-gon face).

Open curves are automatically closed before conversion. Original curves are preserved. Multi-curve: each selected curve produces one plane; all produced in a single undo frame.

Requires: 1+ curves selected.

Create a cylinder primitive.

Opens a dialog with radius, height, and segment controls.

Draw a box interactively in the viewport.

Click and drag to set the base, then drag up to set height.

Draw a circle curve interactively in the viewport.

Creates a closed circle CurveData. Use "Curve to Mesh" or "Curve to Pipe" for further operations.

Hold X for snap Shift+click for topo snap Esc to cancel

Draw a circle interactively in the viewport.

Creates a circular N-gon polygon mesh.

Hold X for snap Esc to cancel

Draw a cylinder interactively in the viewport.

Click and drag to set the base radius, then drag up to set height.

Draw a rectangle interactively in the viewport.

Click and drag to set the size. Supports ground plane and surface modes.

Shift+R to activate Hold X for snap Esc to cancel

Draw a rectangle curve interactively in the viewport.

Creates a closed rectangle CurveData. Use "Curve to Mesh" or "Curve to Pipe" for further operations.

Hold X for snap Esc to cancel

Fill the selected closed curve(s) with a single planar n-gon face.

Use this to build floor tiles, sign faces, logo plates, or any flat shape defined by an outline. Multi-curve: each selected curve is filled.

Original curves are preserved.

Requires: 1+ closed curves selected.

Create a funnel primitive with hollow cone and tube spout.

Opens a dialog with diameters, heights, and wall thickness controls.

Create a gear (involute spur gear) primitive.

Opens a dialog with tooth count, module, pressure angle, and bore controls.

Create a heart primitive.

Opens a dialog with width, height, hollow, and resolution controls.

Create a hemisphere primitive with flat base.

Opens a dialog with radius, segments, and flat base toggle.

Create a hex nut primitive.

Opens a dialog with hex size, bore diameter, and thread controls.

Create a J-shaped hook profile extruded to width.

Hook angle controls how closed the hook is (180=J, 270=nearly closed).

Create a knob primitive with smooth, fluted, or star style.

Opens a dialog with diameter, height, style, and dome controls.

Create an L-shape primitive.

Opens a dialog with arm lengths, thickness, and depth controls.

Browse the OpenSource CAD Parts Library and import ready-made parts (fasteners, hardware, mechanical assemblies, props).

Search by name; click Import on any card to drop the part into the current scene.

Create a flat plane primitive.

Opens a dialog with width, height, and subdivision controls.

Create a pyramid primitive with configurable sides and truncation.

Opens a dialog with base radius, height, sides, and truncation controls.

Revolve the selected profile curve around an axis to build a surface of revolution — vases, bottles, wheels, goblets, turned legs.

One click performs a full revolution about the default axis. For explicit axis / angle / segments, use the API: `curve.revolveAround("y", { angle: 180, segments: 32 })`.

Original curve is preserved.

Requires: 1 profile curve selected.

Create a ring (flat hollow disc) primitive.

Opens a dialog with outer/inner radius and height controls.

Create a box with rounded vertical edges.

Flat top and bottom, smooth rounded corners when viewed from above.

Create a screw primitive.

Opens a dialog with head type, shank dimensions, and thread controls.

Create a screw and hex nut together.

Thread pitch, depth, and bore/shank radius are kept in sync so the nut threads perfectly onto the screw.

Create a sphere primitive.

Opens a dialog with radius, segments, and rings controls.

Create a spring (helical coil) primitive.

Opens a dialog with coil radius, wire radius, pitch, and turn controls.

Create a star primitive.

Opens a dialog with point count, radii, height, and hollow controls.

Create a hollow storage box with rounded corners.

Walls, floor, and open top. Specify inner dimensions and wall/floor thickness.

Sweep a profile curve along a path curve to build a tube/extrusion mesh.

The popup opens empty: assign the PROFILE (cross-section) and PATH (centerline) curves with the two ＋ pickers. Think rope, moulding, pipe runs, or rail extrusions.

Original curves are preserved.

Requires: 2 curves in the scene.

Create a T-shape primitive.

Opens a dialog with top width, stem height, thickness, and depth controls.

Create extruded 3D text.

Opens a live-preview popup with text, font, size, depth, bevel, and layout controls. Choose from bundled fonts or upload your own TTF/OTF.

Create a torus (donut) primitive.

Opens a dialog with major radius, minor radius, and segment controls.

Create a tube (hollow cylinder) primitive.

Opens a dialog with outer/inner radius, height, and open-ended toggle.

Create a wedge (triangular prism) primitive.

Opens a dialog with width, height, and depth controls.

Delete the selected control vertices from the active curve.

If all CVs of a curve are deleted, the curve itself is removed. Undoable via Ctrl+Z.

Requires: 1+ CVs selected.

Translate the selected control vertices by the entered offset.

Handles move rigidly with their anchor CV. Undoable via Ctrl+Z.

Requires: 1+ CVs selected.

Change the polynomial degree of a curve.

1 = linear segments, 2 = quadratic Bezier, 3 = cubic Bezier. Existing CV positions are preserved; handle behavior reshapes to match the new degree.

The popup opens empty: ＋ a curve, pick the Degree, Create. Requires: 1+ curve in the scene.

Toggle whether the selected curves are open (endpoints free) or closed (endpoints connected).

Open curves can be converted to pipes or extruded; closed curves can also be filled with a plane. Multi-curve: each curve flips independently; all flip in a single undo frame.

Undoable: Ctrl+Z restores the previous open/closed state on every curve.

Requires: 1+ curves selected.

Add a bend deformer to the selected mesh.

Bends geometry along a circular arc.

Requires: 1+ objects selected

Add an FFD (Free-Form Deformation) lattice deformer to the selected mesh.

Creates a 3D grid of control points around the mesh. Moving control points deforms the enclosed geometry smoothly.

Supports Bernstein (global) and B-spline (local) basis functions.

Requires: 1+ objects selected

Add a normal push deformer to the selected mesh.

Pushes vertices along their normals by a distance.

Requires: 1+ objects selected

Add a shrinkwrap deformer to project vertices onto a target surface.

Select 2 meshes: first = deformed mesh, second = target surface. Or select 1 mesh and set target in the popup.

Modes: Nearest Point, Project Normal

Requires: 1+ objects selected, 2+ meshes in scene

Add a sine wave deformer to the selected mesh.

Applies sinusoidal displacement along the deformer axis.

Requires: 1+ objects selected

Add a smooth deformer to the selected mesh.

Opens a dialog with smoothing iterations and factor.

Requires: 1+ objects selected

Add a squash deformer to the selected mesh.

Squashes/stretches geometry with volume preservation.

Requires: 1+ objects selected

Add a taper deformer to the selected mesh.

Scales geometry along the deformer axis.

Requires: 1+ objects selected

Add a twist deformer to the selected mesh.

Twists geometry around the deformer axis.

Requires: 1+ objects selected

Add a vertex snap deformer to snap vertices to a target mesh.

Select 2 meshes: first = deformed mesh, second = target. Or select 1 mesh and set target in the popup.

Modes: Closest Vertex, Closest Point

Requires: 1+ objects selected, 2+ meshes in scene

Add a wave deformer to the selected mesh.

Creates concentric ripple waves from the deformer center.

Requires: 1+ objects selected

Create a cage-based volumetric deformer.

Pick a cage mesh and one or more driven meshes, then Build. Supports MVC (fast) and Green Coordinates (shape-preserving).

Requires: 1+ objects selected

Move the object's pivot point to the center of its bounding box.

Requires: 1+ objects selected

Combine multiple meshes into a single mesh.

Pick 2+ meshes in the popup; they merge into one object.

Copy selected objects to the clipboard.

Paste re-inserts at the same world position (zero-offset; never offset from source).

Requires: 1+ objects selected Shortcut: Ctrl+C

Sweep a flat ribbon strip along each selected curve (the curve is the centerline).

The ribbon is gravity-aware — a ground-plane curve yields a flat strip. Width is in the active working unit; banking rolls the strip into corners. Original curves are preserved.

Requires: 1+ curves selected.

Cut selected objects (copy then delete) with undo support.

Paste re-inserts at the same world position (zero-offset). Undo restores the cut objects + original selection.

Requires: 1+ objects selected Shortcut: Ctrl+X

Create a copy of the selected object(s).

The duplicate is placed at the source's exact position.

Requires: At least 1 object selected

Distribute copies of the selected geometry evenly (by arc length) along a curve.

Opens a popup to pick the PATH CURVE (← Set from the viewport selection) and the TARGET GEOMETRY, then set count / align-to-tangent / closed-loop.

Requires: at least one curve in the scene.

Exit isolate mode and restore all previously-hidden objects.

No-op when not currently in isolate mode (the action is only applicable when isolated).

Requires: Currently in isolate mode

Bake the current transform into the mesh vertices.

The object's transform becomes identity while geometry stays in place. Opens a dialog to choose which transforms to freeze (translate/rotate/scale).

Requires: 1+ objects selected

Create a grid array of duplicates.

Opens an interactive popup to set X/Y/Z count and spacing with live preview.

Requires: Exactly 1 object selected

Create a group node. With objects selected, the group wraps the selection; with nothing selected, an empty group is created.

Groups are the default DAG building block.

Hide the selected objects from the viewport.

Hidden objects are deselected. Use Show All to reveal them.

Requires: 1+ objects selected

Merge duplicate-named materials (regex `/[.](\d+)$/`) into the canonical material (Instant-Clean parity).

Paste objects from the clipboard at their original world position.

Supports multi-object paste with a single undo frame. Zero-offset: pasted meshes appear exactly where the source meshes were copied from.

Requires: Clipboard has content (run Copy or Cut first) Shortcut: Ctrl+V

Create radially distributed duplicates around an axis.

Opens an interactive popup to set count, angle, axis, and radius with live preview.

Requires: Exactly 1 object selected

AnimBox uses skin clusters with joint indices instead of arbitrary vertex groups. Empty-vgroup cleanup is part of the skinning workflow, not the mesh repair flow. (No-op for Instant-Clean parity.)

Remove materials from the asset that no mesh references (Instant-Clean parity).

Reset the selected object's position, rotation, and scale to defaults.

Position → (0,0,0), Rotation → (0,0,0), Scale → (1,1,1)

Requires: 1+ objects selected

Separate disconnected components into individual meshes.

Each island of connected geometry becomes its own object.

Requires: 1+ objects selected

Show all hidden objects in the scene.

Reveals all previously hidden meshes.

Requires: At least one hidden mesh

Remove the selected group, keeping its children as individual objects.

Requires: A group selected

Apply weighted vertex normals.

Three modes (face-area / angle-at-vert / combined). Default = combined (Blender default).

Smooth vertex normals with angle-based smoothing groups. Faces meeting at angles steeper than the crease threshold form separate smoothing groups; each vertex stores ONE normal (the fold of its group normals), so topology never changes — steeper thresholds bias normals toward dominant face groups rather than producing faceted flat shading. Use Recalculate Normals first if face winding is inconsistent.

Bend vertices around an axis. Object mode: bends every vertex of the selected mesh. Vertex mode: bends only the selected vertex subset. Edge mode: bends the endpoints of selected edges. Face mode: bends all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Internal action used by mesh.validateAndRepair to clear sharp edge markings. Not surfaced in Quick Functions; reached via validate-lib suggestedFix dispatch only.

AnimBox computes split normals from face geometry on every render; no custom layer to clear. (No-op for Instant-Clean parity.)

Slide selected edges along their adjacent faces. Edge mode: slides the selected edges along perpendicular edges. Face mode: slides the border edges of the selected faces. Vertex mode: not supported (no coherent slide direction). Requires: 1+ components selected (edge/face mode)

Push or pull vertices along their outward direction. Object mode: moves every vertex of the selected mesh. Vertex mode: moves only the selected vertex subset. Edge mode: moves the endpoints of selected edges. Face mode: moves all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Recalculate face normals for consistent winding.

Fixes inverted faces using BFS traversal.

Reverse normals of selected faces only.

Requires: 1+ faces selected

Reverse all normals on the selected mesh.

Flips inside-out meshes.

Requires: 1+ objects selected

Adjust vertex normals manually.

Opens a dialog with normal editing options.

Shear vertices along an axis based on their position. Object mode: shears every vertex of the selected mesh. Vertex mode: shears only the selected vertex subset. Edge mode: shears the endpoints of selected edges. Face mode: shears all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Move vertices along their normals to shrink or fatten geometry. Object mode: moves every vertex of the selected mesh. Vertex mode: moves only the selected vertex subset. Edge mode: moves the endpoints of selected edges. Face mode: moves all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Relax vertex positions using Laplacian smoothing. Object mode: smooths every vertex of all selected meshes. Vertex mode: smooths only the selected vertex subset. Edge mode: smooths the endpoints of selected edges. Face mode: smooths all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Morph vertices toward a spherical shape. Object mode: morphs every vertex of the selected mesh. Vertex mode: morphs only the selected vertex subset. Edge mode: morphs the endpoints of selected edges. Face mode: morphs all vertices of selected faces. Requires: 1+ mesh selected (object mode) OR 1+ components selected (vertex/edge/face mode)

Slide vertices along their connected edges. Object mode: slides all vertices of the selected mesh. Vertex mode: slides only the selected vertex subset. Edge mode: slides the endpoints of selected edges. Face mode: not supported (face-mode slide is geometrically undefined). Requires: 1+ mesh selected (object mode) OR 1+ vertices/edges selected

Enter Sculpt Mode on the selected mesh.

15 brushes available: Draw, Smooth, Grab, Inflate, Flatten, Pinch, Crease, Clay, Layer, Scrape, Fill, Blob, Nudge, Slide Relax, Mask.

Requires: 1 mesh selected

Convert island selection to edge selection.

Selects every 3D edge belonging to faces in the chosen islands.

Requires: At least 1 island selected

Convert island selection to face selection.

Selects every face that belongs to any chosen island.

Requires: At least 1 island selected

Convert island selection to vertex selection.

Selects every 3D vertex referenced by faces in the chosen islands.

Requires: At least 1 island selected

Convert UV-loop selection to edge selection.

Selects every 3D edge whose two endpoints both have selected loops on the same face. Mirrors the "vertices→edges" semantics applied to face-corner data.

Requires: At least 1 UV loop selected

Convert UV-loop selection to face selection.

Selects each face whose ALL UV loops are selected (mirrors "vertices→faces" semantics).

Requires: At least 1 UV loop selected

Convert UV-loop selection to vertex selection.

Selects every 3D vertex referenced by any selected loop. Multiple loops at a UV seam collapse onto the same shared vertex.

Requires: At least 1 UV loop selected

Convert vertex selection to edge selection.

Selects all edges whose vertices are both selected.

Requires: At least 1 vertex selected

Convert face selection to edge selection.

Selects all edges of the selected faces.

Requires: At least 1 face selected

Convert vertex selection to face selection.

Selects all faces whose vertices are all selected.

Requires: At least 1 vertex selected

Convert edge selection to face selection.

Selects all faces whose edges are all selected.

Requires: At least 1 edge selected

Convert UV-loop selection to island selection.

Selects every UV island that contains any selected loop.

Requires: At least 1 UV loop selected

Convert vertex selection to island selection.

Selects every UV island that contains a face referencing one of the selected vertices.

Requires: At least 1 vertex selected

Convert edge selection to island selection.

Selects every UV island that contains a face touched by any selected edge.

Requires: At least 1 edge selected

Convert face selection to island selection.

Selects every UV island that contains a selected face.

Requires: At least 1 face selected

Convert vertex selection to UV-loop selection.

Selects every UV loop (face-corner) that references one of the selected vertices. Loops on opposite sides of a UV seam are distinct, so a single shared 3D vertex can yield multiple loops.

Requires: At least 1 vertex selected

Convert edge selection to UV-loop selection.

Selects every UV loop at a corner of any selected edge: typically 4 loops per interior edge (2 face-corners × 2 vertices), 2 for boundary edges. Seam-split loops are preserved.

Requires: At least 1 edge selected

Convert face selection to UV-loop selection.

Selects every UV loop in the selected faces (one loop per face-corner).

Requires: At least 1 face selected

Convert island selection to UV-loop selection.

Selects every UV loop belonging to the chosen islands.

Requires: At least 1 island selected

Convert edge selection to vertex selection.

Selects all vertices of the selected edges.

Requires: At least 1 edge selected

Convert face selection to vertex selection.

Selects all vertices of the selected faces.

Requires: At least 1 face selected

Grow the current component selection by one ring.

Vertex mode: adds adjacent vertices. Edge mode: adds adjacent edges by shared vertex. Face mode: adds adjacent faces by shared edge.

Requires: ≥1 component selected

Invert the current component selection.

All unselected components of the current mode become selected; the previously-selected components become unselected.

Requires: vertex/edge/face mode with a mesh selected Shortcut: Ctrl+I

Select all objects (object mode) or all components (vertex/edge/face mode).

In object mode: selects all meshes. In component mode: selects all vertices/edges/faces of the active mesh.

Shortcut: Ctrl+A

Select faces that are completely surrounded by other faces (no boundary edges).

Select all connected components from the current selection.

Flood-fills from selected elements to find all connected geometry.

Requires: At least 1 vertex/edge/face selected

Select loose/floating vertices not connected to any face.

Select non-manifold geometry (boundary edges, wire edges, bowtie vertices).

Useful for finding topology problems before export.

Select every Nth element from the current selection (checker pattern).

Requires an existing selection to work from.

Requires: At least 1 component selected

Select edges where the angle between adjacent faces exceeds a threshold.

Opens a dialog to set the angle threshold in degrees.

Select elements with similar properties to the current selection.

Opens a dialog to choose property (area, perimeter, normal angle) and threshold.

Select faces by vertex count (triangles, quads, n-gons).

Opens a dialog to choose face side count and comparison operator.

Select the shortest path between two elements.

Not available from Quick Functions. Use Ctrl+Shift+Click on two elements in the viewport.

Shrink the current component selection.

Removes the boundary components of the selection island, leaving only the interior.

Requires: ≥1 component selected

Import skin weights from a previously saved .json file.

Weights are matched by joint name. For different topology, position-space or UV-space transfer is used.

Requires: Skinned mesh

Export skin weights to a .json file.

Includes joint names, per-vertex weights, bind-pose positions, and UVs for topology-independent transfer.

Requires: Skinned mesh

Transfer skin weights between meshes using proximity-based falloff.

Source and target meshes are chosen in the dialog that opens. Use this to propagate rigging from one mesh to another, or to consolidate weights after a topology change.

Requires: At least 2 skinned meshes

Slice mesh with a plane.

Opens an interactive popup with plane axis, offset, fill, and clear controls.

Activate the Draw Curve tool.

Click to place connected line segments. Snaps to vertices, edge midpoints, and face centers.

Shift = 15° snap. Enter = confirm curve. Esc = cancel.

Curves register as scene objects in the Outliner.

Export every mesh in the scene to GLB, GLTF, OBJ, FBX, PLY, or STL.

Included: geometry, skeleton (bones + bind poses), materials (with textures where the format supports them).

Not included: animation timeline — switch to the Previewer if you need to export with animation.

Hotkey: Ctrl+Shift+E Available in: Model Editor.

Export only the selected meshes to GLB, GLTF, OBJ, FBX, PLY, or STL.

Included: selected mesh geometry, their skeleton (bones + bind poses), and materials (with textures where the format supports them).

Not included: unselected meshes or animation timeline.

Requires: 1+ meshes selected in Object mode Available in: Model Editor.

Import a 3D model into the Model Editor.

Supported: GLB, GLTF, OBJ, FBX, PLY, STL, STEP.

Included: geometry, skeleton (bones + bind poses), materials (with textures where the format provides them). The import merges into the active scene; for project-level open use the Shared Asset I/O "Open File" entry instead.

Available in: Model Editor.

Activate the Knife Tool.

Click to place cut points on edges, press Enter to cut.

Make the selected mesh a live surface for snapping.

Other tools (Quad Draw, transforms) can snap to this mesh's surface.

Requires: Exactly 1 object selected

Activate the Quad Draw retopology tool.

Draw new quad topology over an existing mesh surface.

Requires: 1 mesh selected as reference surface

Remesh with Instant Meshes, QuadWild, or AutoRemesher.

Converts mesh to clean quad or triangle topology. Instant Meshes: fast greedy approach. QuadWild: field-guided optimal quad layout. AutoRemesher: global-parameterization quad layout — best organic edge flow (runs in the background, cancellable).

Requires: 1+ objects selected

Slice mesh with a drawn line.
